W12T
New energy Relay
Feature Description
● 40A contact switching capability
● Breakdown voltage(between coil and contacts):4KV
● We can provide the contact gap is 2.1mm,it meets the standard of VDE0126
● UL insulation system:Class F
●Environmental friendly product(RoHS compliant)

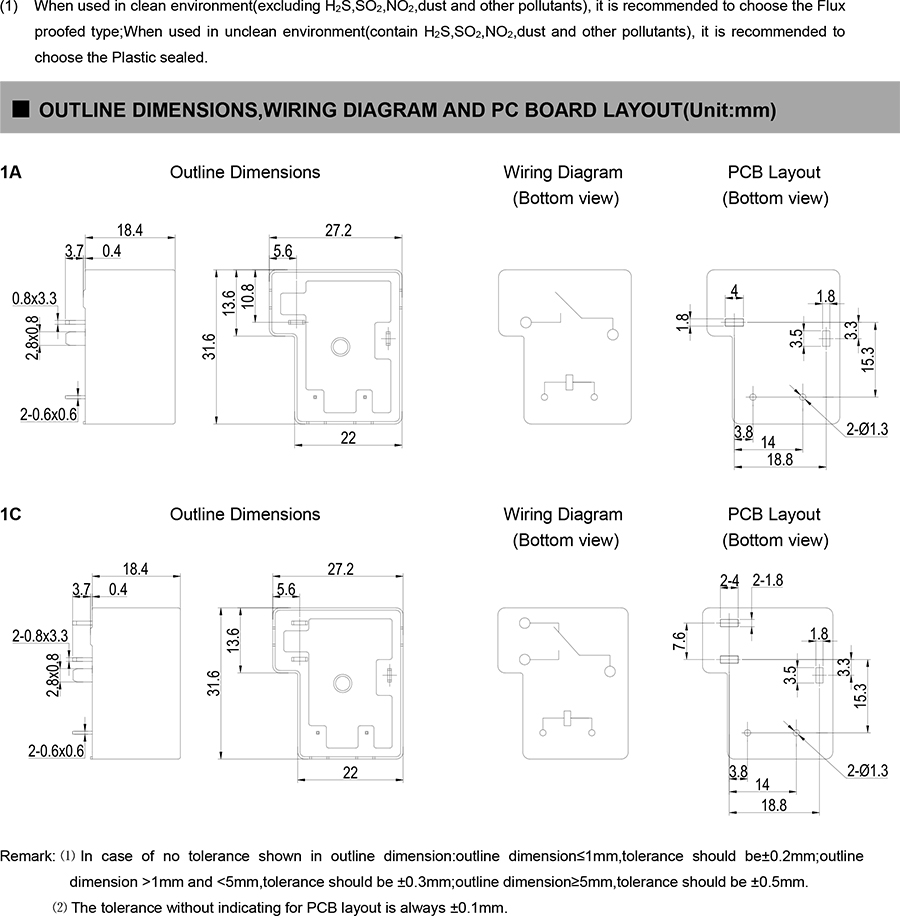

● Outline Dimensions:(31.6×27.2×18.4)mm
● Main applications:Electric vehicles and charging piles, photovoltaic new energy
Product Description
Download PDF
