FH15L-2
Electric latching Relay
Feature Description
● 10A switching capability
● The contact on and off can be controlled by the hand control switch
● Products with operating temperature of 105℃ are available
● Can provide the product meet the standard of IEC60335-1
● UL insulation system:Class F
● Environment-friendly product(RoHS compliant)

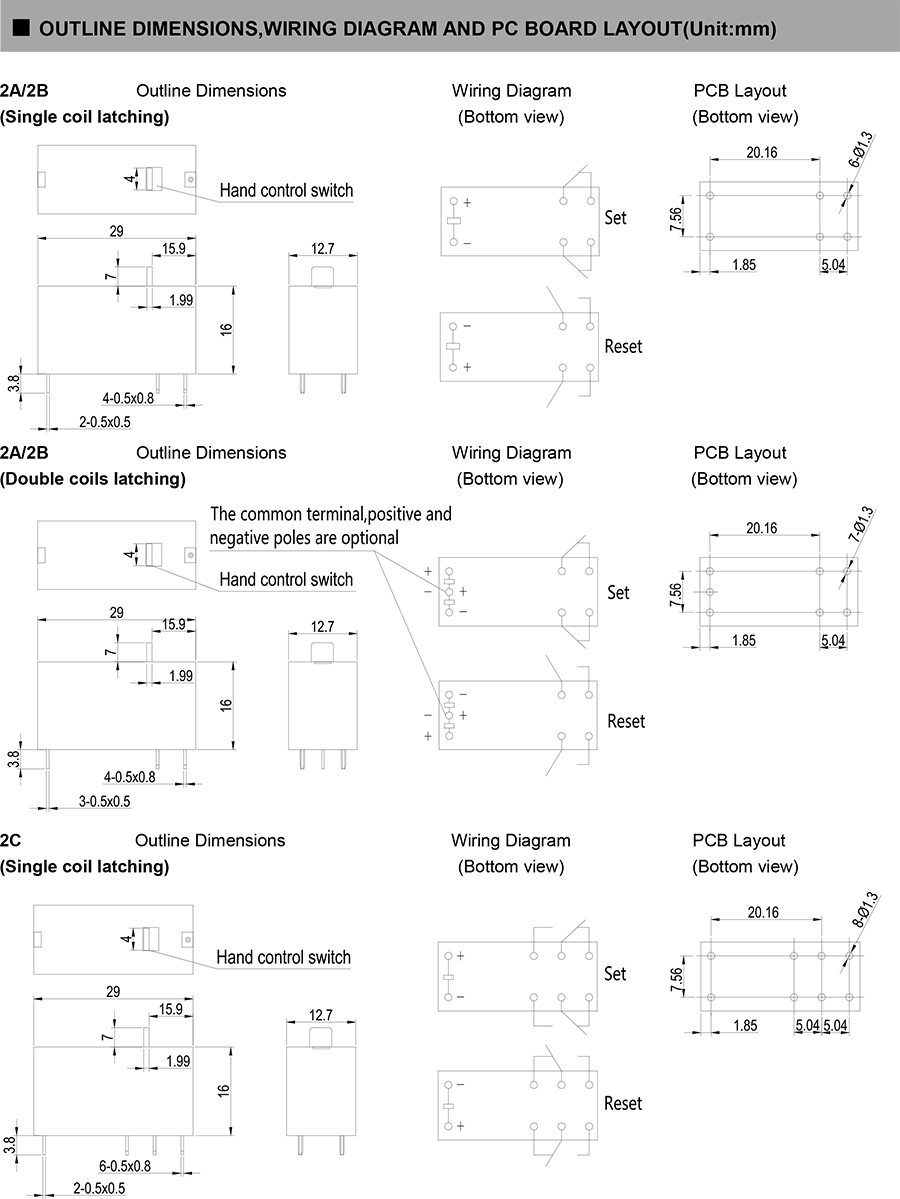

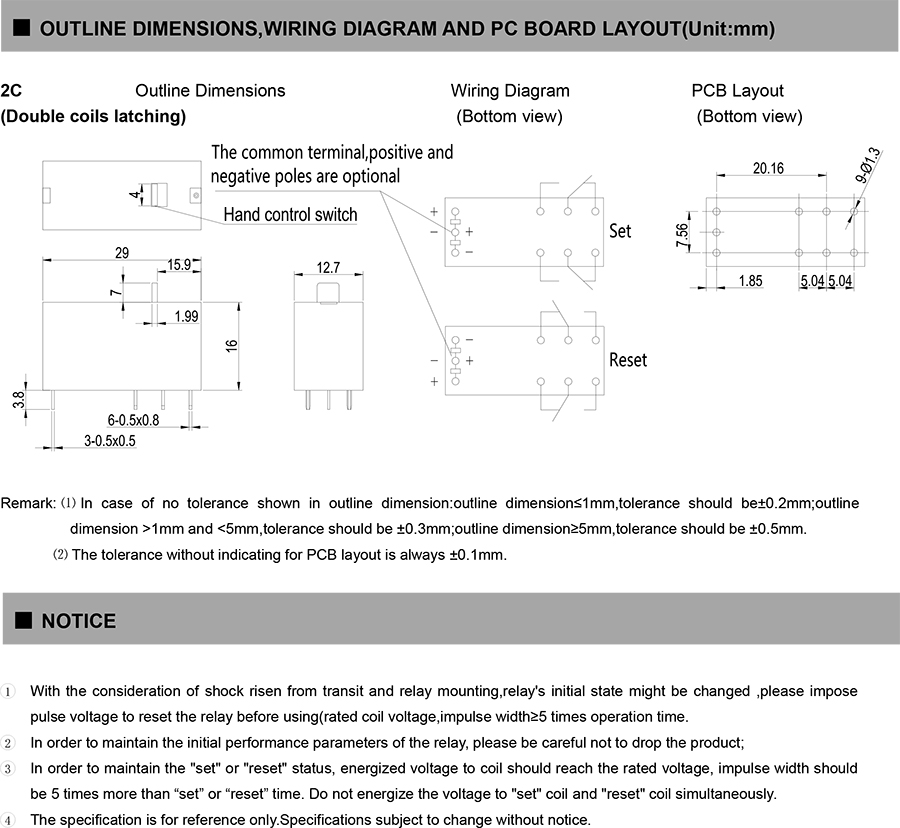

● Outline Dimensions:(29.0×12.7×16.0)mm
● Main application:lndustrial Control
Product Description
