Feature Description

● 20A switching capability

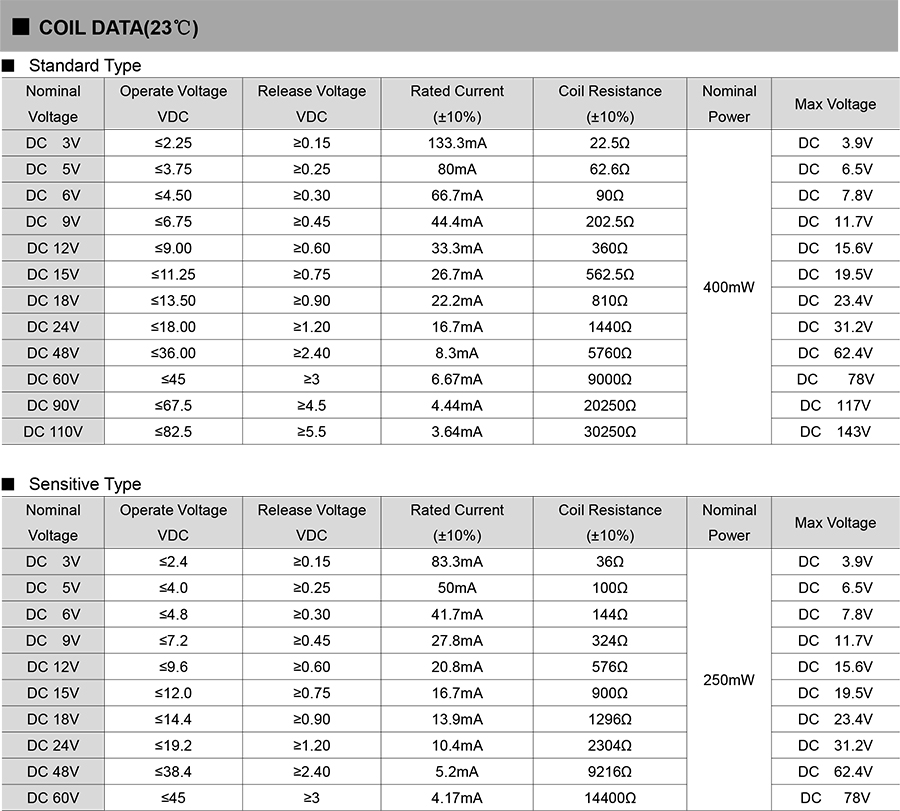

● Provide high sensitive type,coil power is 250mW
● Provide the product meet the standards of IEC60335-1?IEC60730-1?IEC62368-1
● Breakdown voltage(between coil and contacts):5KV
● Creep age distance and air distance≥15mm
● Products with operating temperature of 105℃ are available
● UL insulation system:Class F
● Environment- friendly product(RoHS compliant)

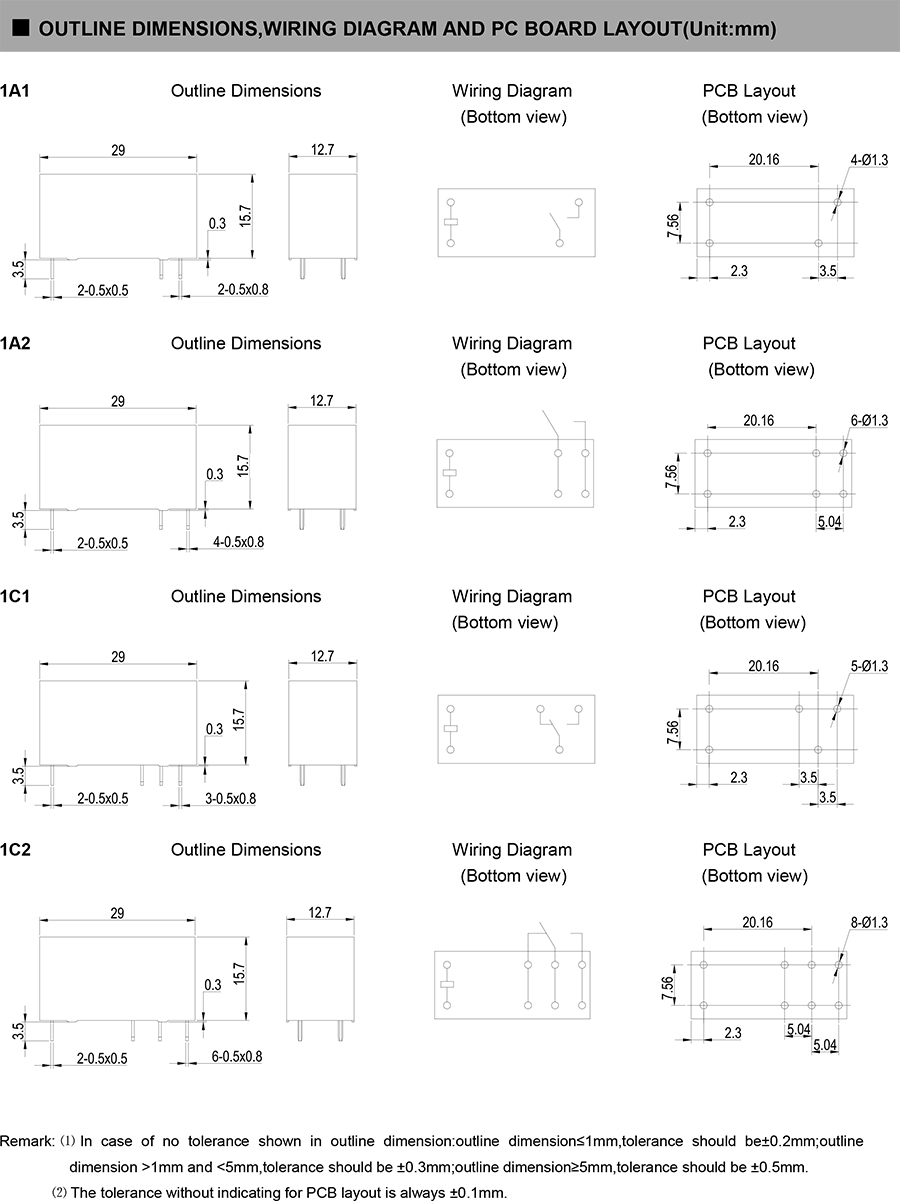

● Outline Dimensions:(29.0×12.7×15.7)mm
● Main application:Home appliance?Smart home?Industrial Control
