Feature Description

● 50A contact switching capability
● We can provide the contact gap is ≥ 1.5mm
● Magnetic Blowout Latching Relay is available
● Surge voltage(1.2/50μs):between contact and coil 12KV
● Contact on and off can be controlled by manual control switch
● UL insulation system:Class F
● Environmental friendly product(RoHS compliant)

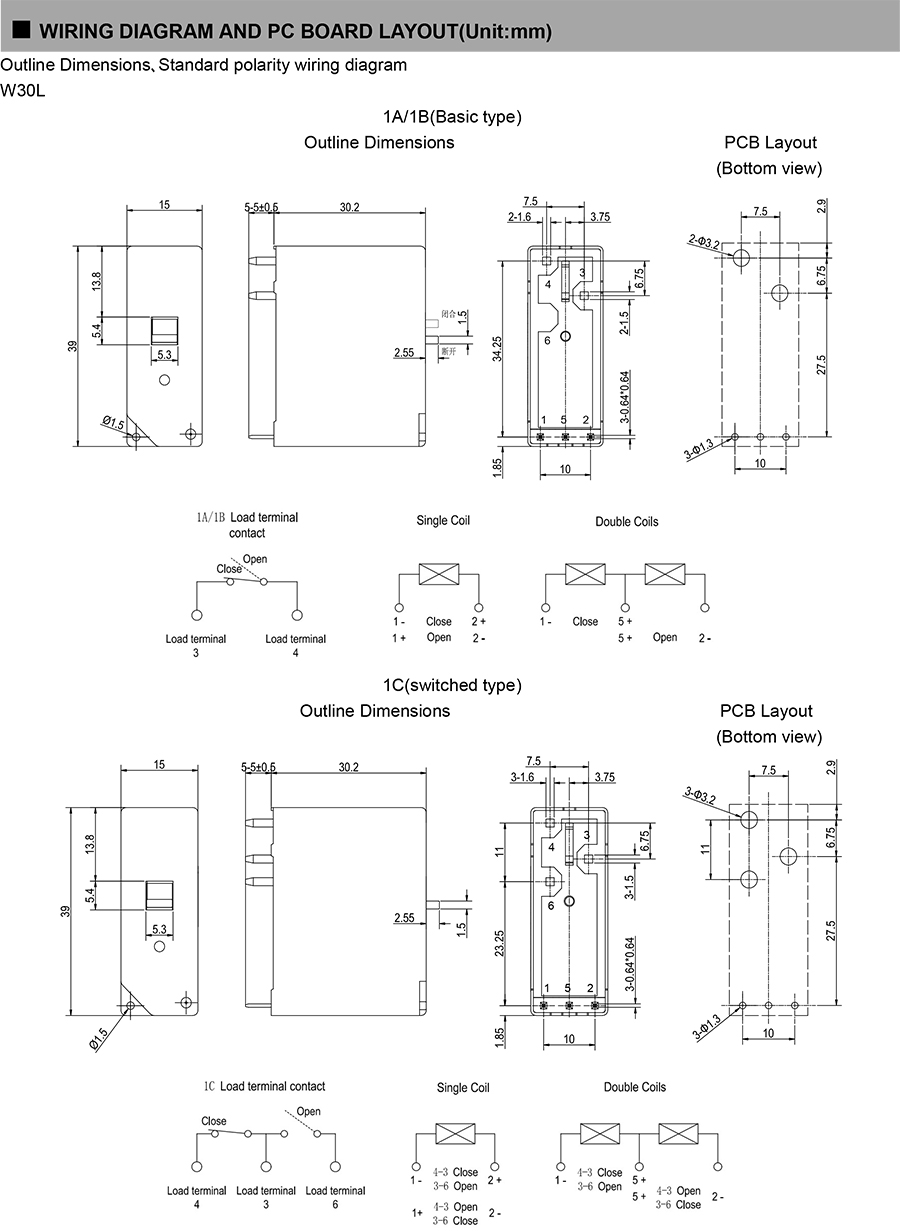

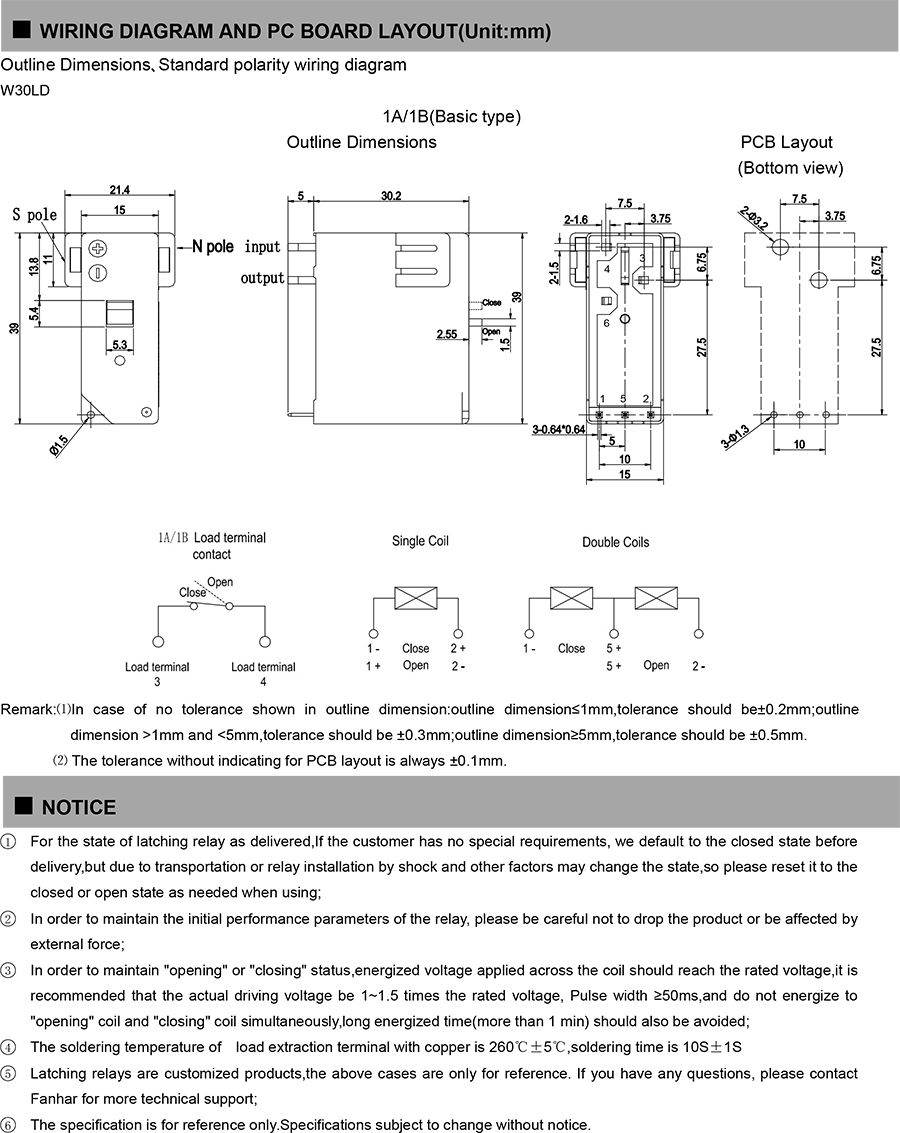

● Outline Dimensions:W30L：(39.0×15×30.2)mm、 W30LD：(39.0×21.4×30.2)mm
● Main application:Smart home,Lighting control
