Feature Description

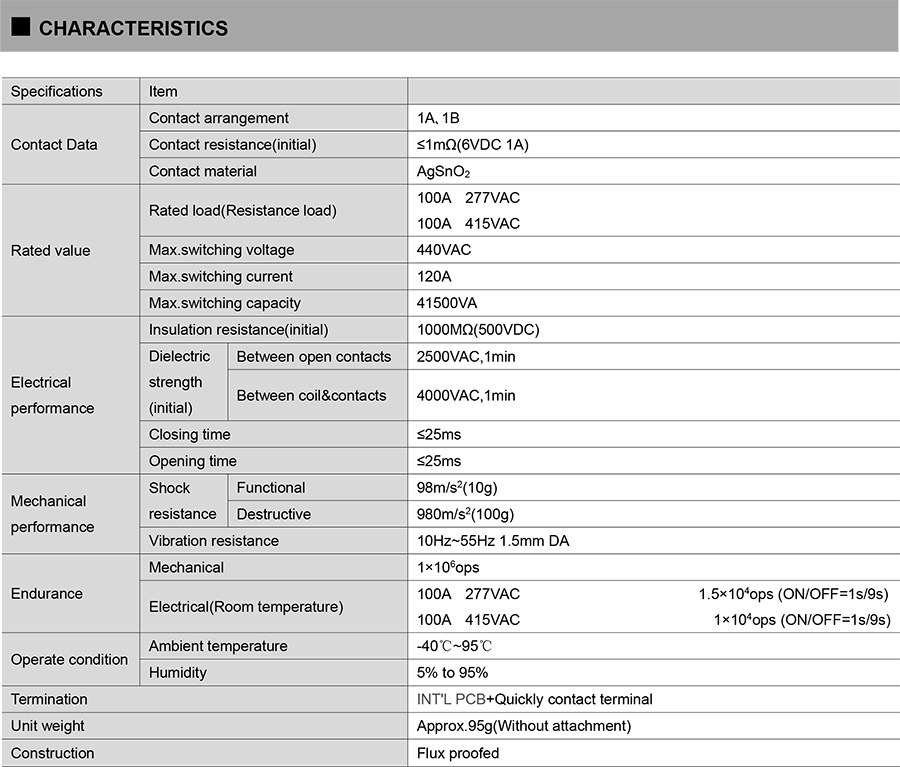

● 120A switching capability
● It meets the DC load capacity of DC60V and 35A

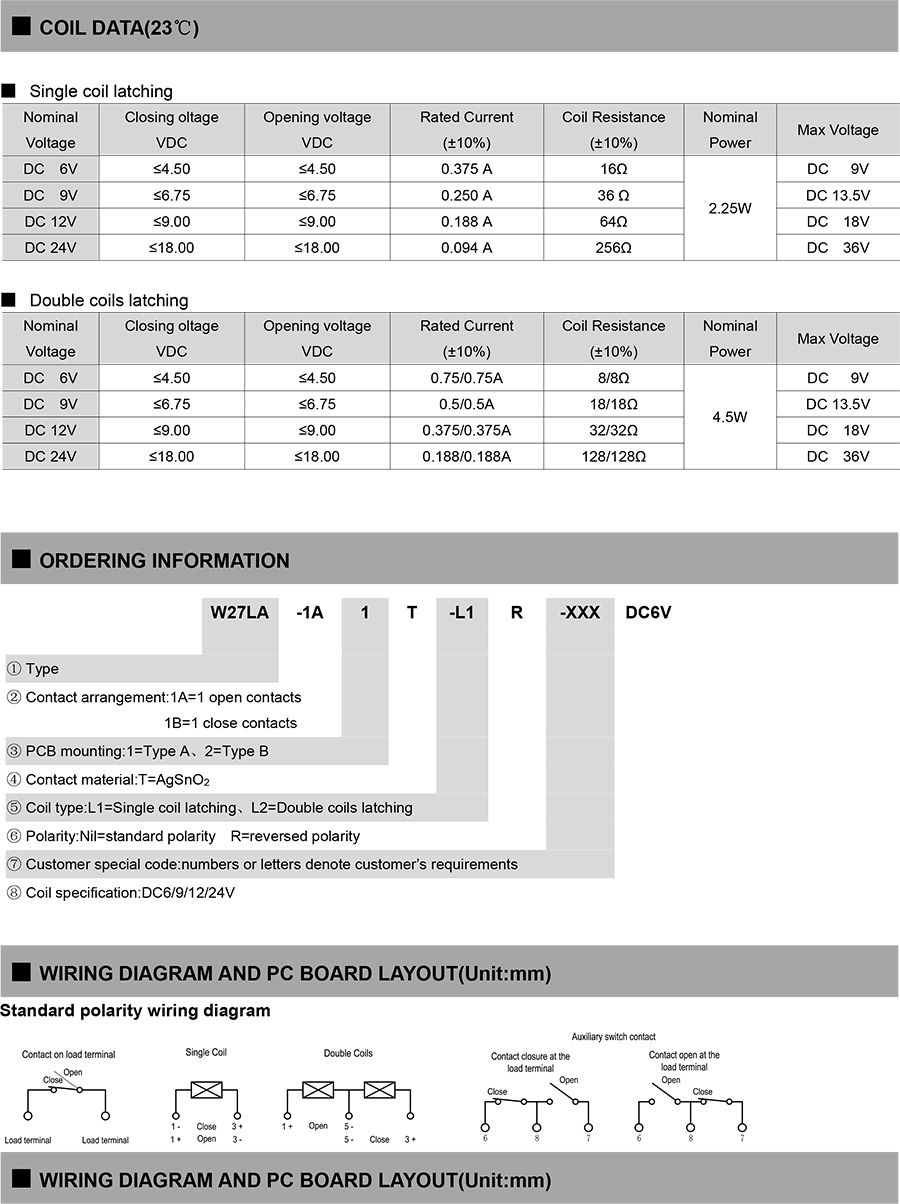

● Single coil and double coils are all available
● Contact on and off can be controlled by manual control switch

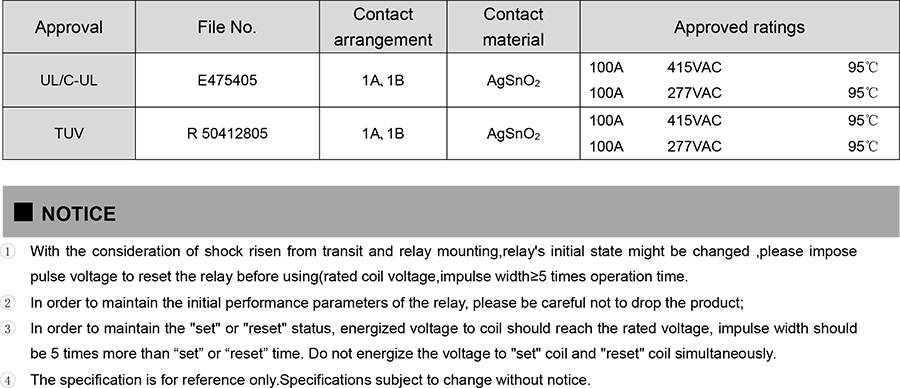

● Provide the contact gap of the product is ≥ 3mm,it meets the Europe standard of VDE0126 from Europe
● Breakdown voltage (between contact and coil):4KV
● Environment-friendly product (RoHS compliant)
● Outline Dimensions:(58.0×40.0×20.8)mm
● Main application:New energy and PV industry(Photovoltaic new energy)?Industry control
